Dingli JCPT0812AC Electric Scissor Lift – 26ft High Capacity 1190lb AC System
Specifications
Description
Dingli JCPT0812AC Compact Electric Scissor Lift – Optimized Product Page Content
🔹 Product Overview

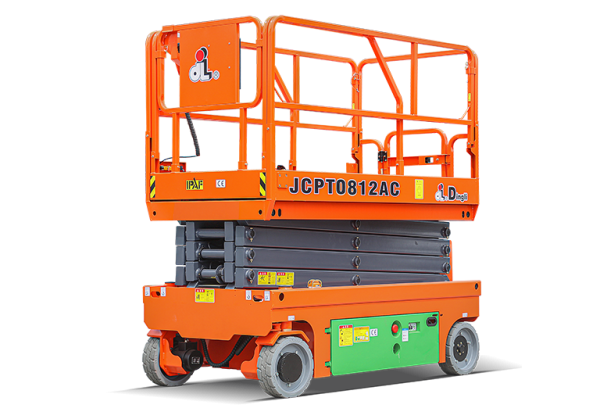

The Dingli JCPT0812AC is a robust, compact Electric Scissor Lift categorized as a “Compact Scissor.” It is designed for maximum efficiency and stability in low- to mid-level access applications, offering a high Safe Working Load (S.W.L) of 1,190 lb (540 kg). This model features a wide platform for productivity and utilizes a fully sealed AC system (drive and lift), which provides maintenance-free operation, superior waterproofing, increased efficiency, and enhanced safety compared to traditional DC systems. It achieves a maximum working height of 26 ft 3 in (8.00 m).
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 26 ft 3 in | 8.00 m |
| Max Platform Height | 19 ft 8 in | 6.00 m |
| Safe Working Load (S.W.L) | 1,190 lb | 540 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 7 ft 5 in × 3 ft 8 in | 2.27 m × 1.12 m |
| Platform Extension | Unidirectional: 2 ft 11 in | Unidirectional: 0.90 m |
| Overall Width | 3 ft 9 in | 1.15 m |
| Overall Length (With Ladder) | 8 ft 2 in | 2.48 m |
| Overall Weight (Lead-acid/Lithium) | 4,387 lb | 1,990 kg |
| Drive System | Full Electric (Fully Sealed AC System) | Full Electric (Fully Sealed AC System) |
| Battery (Lead-Acid) | 24V/185Ah (Maintenance-Free) | 24V/185Ah (Maintenance-Free) |
| Driving Motor | 2×15VAC/0.87kW | 2×15VAC/0.87kW |
| Gradeability | 25 % | 25 % |
| Max Occupants (Indoor/Outdoor) | 2 | 2 |
| Machine Model | JCPT0812AC |
🔹 Key Features & Benefits
-
✅ Maximum Capacity: Offers an exceptionally high 1,190 lb (540 kg) load capacity, which is ideal for heavy tools, materials, and multiple workers (rated for 2 occupants).
-
✅ Compact & Maneuverable: The narrow 3 ft 9 in (1.15 m) width allows for easy passage through standard single doorways and efficient maneuvering in confined indoor spaces.
-
✅ Fully Sealed AC System: The electric drive and lift systems are built with an advanced AC system for maintenance-free reliability, superior water resistance, efficiency, and safety.
-
✅ Low Stowed Height: A stowed height (rails down) of only 5 ft 7 in makes it easy to transport and store in areas with very low overhead clearance.
-
✅ Zero Emission & Quiet: Battery-powered, ensuring clean, low-noise operation, making it perfect for sensitive indoor environments.
-
✅ Automatic Safety Features: Equipped with the automatic pothole protection system for driving stability and automatic fault code display for simplified service diagnostics.
🔹 Applications
-
Interior maintenance, stock picking, electrical, and finishing work in commercial and industrial settings requiring high capacity and moderate lift height (up to 26 ft).
-
Projects that require lifting heavy materials and multiple crew members while still needing to navigate narrow corridors.
-
Any indoor application that demands reliable, low-maintenance lifting with clean, quiet operation.
