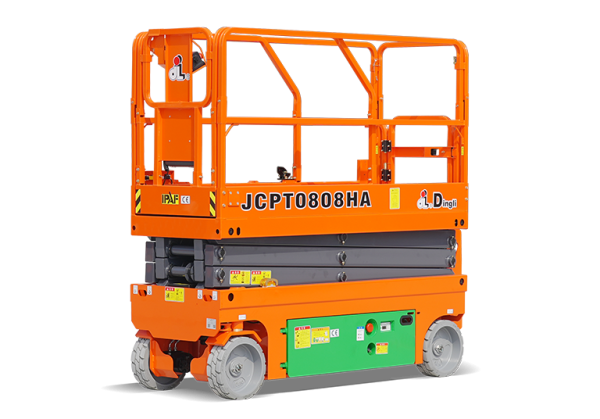

Dingli JCPT0808HA Electric Scissor Lift – 26ft Ultra-Narrow 2’9″ AC System
Specifications
Description
Dingli JCPT0808HA Compact Electric Scissor Lift – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT0808HA is a highly specialized, ultra-narrow Electric Scissor Lift categorized as a “Compact Scissor.” It is specifically designed for maximum access in the most restricted indoor spaces, offering zero emissions and quiet operation. This model is exceptionally narrow, with an overall width of just 2 ft 9 in (0.83 m), allowing it to easily pass through standard single doorways. It features a fully sealed AC system (drive and lift), which provides maintenance-free operation, superior waterproofing, increased efficiency, and enhanced safety compared to traditional DC systems. It achieves a maximum working height of 26 ft 3 in (8.00 m).
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 26 ft 3 in | 8.00 m |
| Max Platform Height | 19 ft 8 in | 6.00 m |
| Safe Working Load (S.W.L) | 837 lb | 380 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 7 ft 5 in × 2 ft 8 in | 2.27 m × 0.81 m |
| Platform Extension | Unidirectional: 2 ft 11 in | Unidirectional: 0.90 m |
| Overall Width | 2 ft 9 in | 0.83 m |
| Overall Length (With Ladder) | 8 ft 2 in | 2.48 m |
| Overall Weight (Lead-acid/Lithium) | 4,673 lb | 2,120 kg |
| Drive System | Full Electric (Fully Sealed AC System) | Full Electric (Fully Sealed AC System) |
| Battery (Lead-Acid) | 24V/185Ah (Maintenance-Free) | 24V/185Ah (Maintenance-Free) |
| Lifting Motor | 16VAC/3.5kW | 16VAC/3.5kW |
| Gradeability | 25 % | 25 % |
| Max Occupants (Indoor/Outdoor) | 2/1 | 2/1 |
| Machine Model | JCPT0808HA |
🔹 Key Features & Benefits
-
✅ Ultra-Narrow Chassis: The narrowest design in its class, at just 2 ft 9 in (0.83 m), allowing unparalleled access through standard single doorways, elevators, and tight aisles.
-
✅ Excellent Reach and Capacity: Provides a working height of over 26 ft and a generous load capacity of 837 lb (380 kg) for its compact width.
-
✅ Fully Sealed AC System: The electric drive and lift systems are built with an advanced AC system, offering maintenance-free reliability, superior waterproofing, efficiency, and safety.
-
✅ Low Stowed Height: A stowed height (rails down) of only 6 ft 2 in makes it easy to transport and store in low-clearance areas.
-
✅ Zero Emission & Quiet: Battery-powered for clean, low-noise operation, essential for sensitive indoor environments like offices and retail spaces.
-
✅ Automatic Safety & Diagnostics: Equipped with the automatic pothole protection system for driving stability and automatic fault code display for streamlined service diagnostics.
🔹 Applications
-
Interior maintenance, stock picking, electrical installation, and detailed finishing work in extremely narrow and congested spaces such as data centers, retail aisles, and small offices.
-
Projects requiring a working height of up to 26 feet where machine width is the critical access constraint (must be less than 3 feet).
-
Any indoor application demanding clean, quiet, and reliable high-reach access with the smallest possible machine size.
