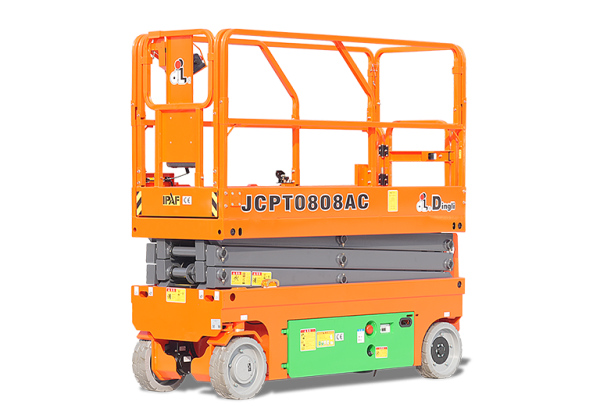

Dingli JCPT0808AC Electric Scissor Lift – 26ft Ultra-Narrow 2’9″ AC System
Specifications
Description
Dingli JCPT0808AC Compact Electric Scissor Lift – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT0808AC is a highly compact, narrow-chassis Electric Scissor Lift categorized as a “Compact Scissor.” It is specifically engineered for maximum access in very restricted indoor spaces, offering zero emissions and quiet operation. This model features an incredibly narrow width of 2 ft 9 in (0.83 m), allowing it to easily pass through standard single doorways. It is equipped with a fully sealed AC system (drive and lift), which provides maintenance-free operation, superior waterproofing, increased efficiency, and enhanced safety compared to traditional DC systems. It achieves a maximum working height of 26 ft 3 in (8.00 m).
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 26 ft 3 in | 8.00 m |
| Max Platform Height | 19 ft 8 in | 6.00 m |
| Safe Working Load (S.W.L) | 837 lb | 380 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 7 ft 5 in × 2 ft 8 in | 2.27 m × 0.81 m |
| Platform Extension | Unidirectional: 2 ft 11 in | Unidirectional: 0.90 m |
| Overall Width | 2 ft 9 in | 0.83 m |
| Overall Length (With Ladder) | 8 ft 2 in | 2.48 m |
| Overall Weight (Lead-acid/Lithium) | 4,761 lb | 2,160 kg |
| Drive System | Full Electric (Fully Sealed AC System) | Full Electric (Fully Sealed AC System) |
| Battery (Lead-Acid) | 24V/185Ah (Maintenance-Free) | 24V/185Ah (Maintenance-Free) |
| Driving Motor | 2×15VAC/0.87kW | 2×15VAC/0.87kW |
| Gradeability | 25 % | 25 % |
| Max Occupants (Indoor/Outdoor) | 2/1 | 2/1 |
| Machine Model | JCPT0808AC |
🔹 Key Features & Benefits
-
✅ Ultra-Narrow Chassis: The narrowest design in its class, at just 2 ft 9 in (0.83 m), allowing unparalleled access through standard single doorways, elevators, and tight aisles.
-
✅ Excellent Reach and Capacity: Provides a working height of over 26 ft and a generous load capacity of 837 lb (380 kg) for its compact width.
-
✅ Fully Sealed AC System: The electric drive and lift systems are built with an advanced AC system, offering maintenance-free reliability, superior waterproofing, efficiency, and safety.
-
✅ Low Stowed Height: A stowed height (rails down) of only 6 ft 2 in makes it easy to transport and store in low-clearance areas.
-
✅ Zero Emission & Quiet: Battery-powered for clean, low-noise operation, essential for sensitive indoor environments like offices and retail spaces.
-
✅ Automatic Safety & Diagnostics: Equipped with the automatic pothole protection system for driving stability and automatic fault code display for streamlined service diagnostics.
🔹 Applications
-
Interior maintenance, stock picking, electrical installation, and detailed finishing work in extremely narrow and congested spaces such as data centers, retail aisles, and small offices.
-
Projects requiring a working height of up to 26 feet where machine width is the critical access constraint (must be less than 3 feet).
-
Any indoor application demanding clean, quiet, and reliable high-reach access with the smallest possible machine size.
