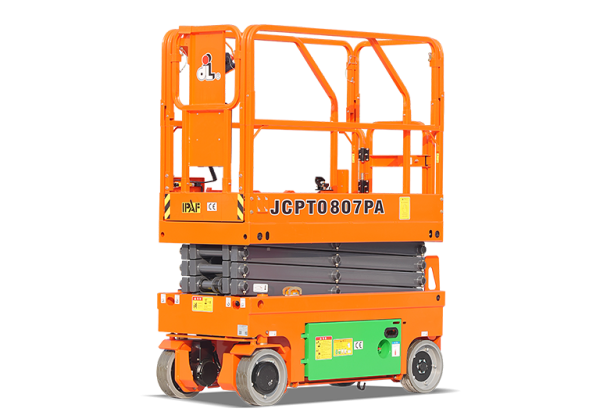

Dingli JCPT0807PA Oil-Free Electric Scissor Lift – 25ft Ultra-Narrow 2’6″
Specifications
Description
Dingli JCPT0807PA Electric Scissor Lift (Oil-Free Series) – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT0807PA is a highly compact, low-reach, all-electric Scissor Lift belonging to the innovative “Oil-Free Scissor” series. It is designed specifically for maximizing accessibility in narrow and sensitive indoor environments. By utilizing electric actuators for all motion control—lifting, lowering, and steering—it completely removes the need for a hydraulic system and oil, ensuring zero environmental impact and significantly lower maintenance costs. The JCPT0807PA offers a maximum indoor working height of 25 ft 7 in (7.80 m) and features an exceptionally small footprint with an overall width of just 2 ft 6 in (0.76 m).
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height (Indoor) | 25 ft 7 in | 7.80 m |
| Max Working Height (Outdoor) | 19 ft 0 in | 5.80 m |
| Max Platform Height (Indoor) | 19 ft 0 in | 5.80 m |
| Safe Working Load (S.W.L) | 507 lb | 230 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 5 ft 6 in × 2 ft 5 in | 1.67 m × 0.74 m |
| Platform Extension | Unidirectional: 2 ft 11 in | Unidirectional: 0.90 m |
| Overall Width | 2 ft 6 in | 0.76 m |
| Overall Length | 6 ft 1 in | 1.86 m |
| Overall Weight (AGM Battery) | 3,637 lb | 1,650 kg |
| Drive System | All-Electric Actuator (Oil-Free) | All-Electric Actuator (Oil-Free) |
| Battery (Standard) | Lead-Acid Maintenance-Free 24V/185Ah | Lead-Acid Maintenance-Free 24V/185Ah |
| Max Occupants (Indoor/Outdoor) | 2/1 | 2/1 |
| Machine Model | JCPT0807PA |
🔹 Key Features & Benefits
-
✅ Oil-Free Technology: Completely removes the hydraulic system by using electric actuators, eliminating oil leaks, reducing maintenance, and ensuring consistent performance in various temperatures.
-
✅ Ultra-Compact Size: The narrowest machine in the PA series at 2 ft 6 in (0.76 m) wide, allowing access through the narrowest single doorways and into extremely confined areas.
-
✅ High Efficiency & Energy Saving: Direct motor drive systems boast 95% total transmission efficiency, achieving over 30% energy savings compared to traditional hydraulic lifts for extended battery life.
-
✅ Zero Emission & Low Noise: All-electric drive ensures clean, quiet operation, ideal for internal work in hospitals, libraries, and finished retail spaces.
-
✅ Smooth Control: Full stroke proportional control provides the operator with exceptionally smooth, precise, and comfortable lifting and lowering.
-
✅ Low Maintenance: Equipped with maintenance-free permanent magnet synchronous motors and standard AGM batteries, which drastically reduce service costs.
🔹 Applications
-
Interior fit-out, general maintenance, and close-quarters access work, especially in older buildings or facilities with very narrow hallways and limited door access.
-
Projects in environments where noise and cleanliness (zero risk of oil contamination) are critical constraints.
-
Tasks requiring a working height up to 25 feet combined with maximum maneuverability.
Delivery
Average Delivery Time is 10-15 days within USA.
For overseas delivery Message Us or Call Toll Free at +86-18221399269.
