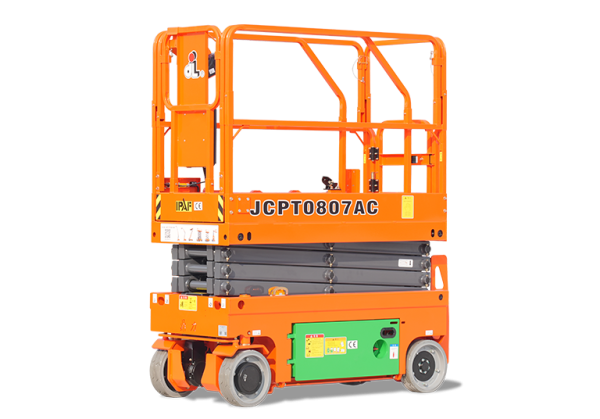

Dingli JCPT0807AC Electric Scissor Lift – 26ft Ultra-Narrow 2’6″ AC System
Specifications
Description
Dingli JCPT0807AC Compact Electric Scissor Lift – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT0807AC is an ultra-compact, low-level access Electric Scissor Lift classified as a “Compact Scissor.” It is specifically designed for optimal maneuverability and access in the most confined indoor spaces, offering zero emissions and quiet operation. This model is exceptionally narrow, with an overall width of just 2 ft 6 in (0.76 m), making it one of the narrowest lifts in its class, perfect for passing through standard single doorways. It is equipped with a fully sealed AC system (drive and lift), which provides maintenance-free operation, superior waterproofing, increased efficiency, and enhanced safety compared to traditional DC systems. It achieves a maximum working height of 25 ft 7 in (7.80 m).
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 25 ft 7 in | 7.80 m |
| Max Platform Height | 19 ft | 5.80 m |
| Safe Working Load (S.W.L) | 507 lb | 230 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 5 ft 6 in × 2 ft 5 in | 1.67 m × 0.74 m |
| Platform Extension | Unidirectional: 2 ft 11 in | Unidirectional: 0.90 m |
| Overall Width | 2 ft 6 in | 0.76 m |
| Overall Length (With Ladder) | 6 ft 1 in | 1.86 m |
| Overall Weight (Lead-acid/Lithium) | 3,593 lb | 1,630 kg |
| Drive System | Full Electric (Fully Sealed AC System) | Full Electric (Fully Sealed AC System) |
| Battery (Lead-Acid) | 24V/185Ah (Maintenance-Free) | 24V/185Ah (Maintenance-Free) |
| Driving Motor | 2×15VAC/0.5kW | 2×15VAC/0.5kW |
| Gradeability | 25 % | 25 % |
| Max Occupants (Indoor/Outdoor) | 2/1 | 2/1 |
| Machine Model | JCPT0807AC |
🔹 Key Features & Benefits
-
✅ Maximum Compactness: With an ultra-narrow overall width of just 2 ft 6 in (0.76 m), this lift offers unparalleled access through single doors, narrow corridors, and small elevators.
-
✅ Efficient Mid-Height Access: Provides a solid working height of over 25 ft with a very small and lightweight chassis (3,593 lb).
-
✅ Fully Sealed AC System: The electric drive and lift systems are built with an advanced AC system, offering maintenance-free reliability, superior waterproofing, efficiency, and safety.
-
✅ Ultra-Low Stowed Height: A stowed height (rails down) of only 6 ft is ideal for transport and for work in areas with minimal overhead clearance.
-
✅ Zero Emission & Quiet: Battery-powered for clean, low-noise operation, essential for sensitive indoor environments.
-
✅ Automatic Safety & Diagnostics: Equipped with the automatic pothole protection system for driving stability and automatic fault code display for streamlined service diagnostics.
🔹 Applications
-
Interior maintenance, stock picking, ceiling work, electrical installation, and detailed finishing work in extremely narrow and congested spaces such as data centers, retail aisles, and small offices.
-
Projects requiring a working height of up to 26 feet where machine width is the primary access constraint (must be less than 30 inches/0.76m).
-
Any indoor application demanding clean, quiet, and reliable high-reach access with the smallest machine size.
