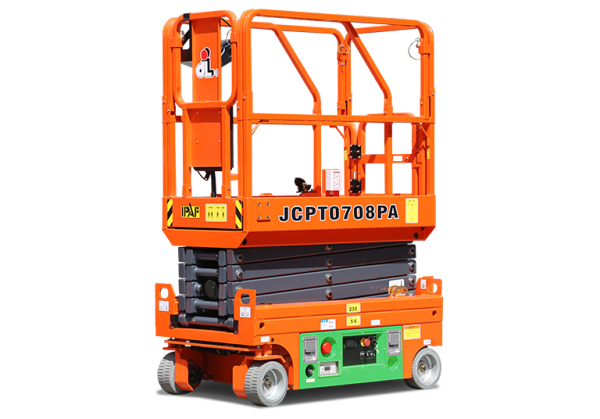

Dingli JCPT0708PAH Oil-Free Electric Scissor Lift – 27ft 11in Narrow Access, Large Wheel
Specifications
Description
Dingli JCPT0708PAH Electric Scissor Lift (Oil-Free Series) – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT0708PAH is an advanced, compact, all-electric Scissor Lift designed for both indoor and semi-rough outdoor access due to its specialized Large Wheel design (indicated by ‘H’). Part of the “Oil-Free Scissor” series, this model is powered entirely by efficient electric actuators for lifting, lowering, and steering, completely eliminating the need for a hydraulic system. This results in zero oil leakage, low maintenance, quiet operation, and exceptional energy savings (over 30%). The JCPT0708PAH achieves a maximum indoor working height of 27 ft 11 in (7.60 m) while maintaining an ultra-narrow width of 2 ft 8 in (0.81 m).
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height (Indoor) | 27 ft 11 in | 7.60 m |
| Max Working Height (Outdoor) | 18 ft 4 in | 5.60 m |
| Max Platform Height (Indoor) | 21 ft 8 in | 6.60 m |
| Safe Working Load (S.W.L) | 507 lb | 230 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 4 ft 6 in × 2 ft 4 in | 1.37 m × 0.70 m |
| Platform Extension | Unidirectional: 2 ft 0 in | Unidirectional: 0.60 m |
| Overall Width | 2 ft 8 in | 0.81 m |
| Overall Length | 5 ft 1 in | 1.54 m |
| Overall Weight (AGM Battery) | 2,954 lb | 1,340 kg |
| Drive System | All-Electric Actuator (Oil-Free) | All-Electric Actuator (Oil-Free) |
| Battery (Standard) | Lead-Acid Maintenance-Free 24V/115Ah | Lead-Acid Maintenance-Free 24V/115Ah |
| Max Occupants (Indoor/Outdoor) | 2/0 | 2/0 |
| Machine Model | JCPT0708PAH |
🔹 Key Features & Benefits
-
✅ Oil-Free Technology: Uses electric actuators for all functions, eliminating the hydraulic system, which avoids oil leakage, reduces maintenance costs, and ensures zero-emission operation.
-
✅ High Mobility (H Model): Features large wheels for better obstacle-crossing ability and improved performance on slightly uneven indoor floors or limited outdoor use.
-
✅ Ultra-Compact Size: Maintains an ultra-narrow 2 ft 8 in (0.81 m) width and short 5 ft 1 in length for superb maneuverability in crowded or small work sites.
-
✅ High Efficiency & Energy Saving: Direct motor drive systems deliver 95% total transmission efficiency, resulting in over 30% energy savings for longer operational cycles.
-
✅ Zero Emission & Low Noise: All-electric operation is quiet and environmentally friendly, making it ideal for noise- and cleanliness-sensitive locations.
-
✅ Operator Comfort: Full stroke proportional control provides smooth, precise, and comfortable lifting and lowering motion.
🔹 Applications
-
Interior fit-out, maintenance, and installation in spaces with narrow doorways, tight corridors, and elevators.
-
Sensitive indoor environments (hospitals, data centers) that require clean, quiet operation and protection against hydraulic fluid spills.
-
Work requiring high accessibility and the ability to traverse small obstacles or slightly uneven surfaces (due to larger wheels).
Delivery
Average Delivery Time is 10-15 days within USA.
For overseas delivery Message Us or Call Toll Free at +86-18221399269.
