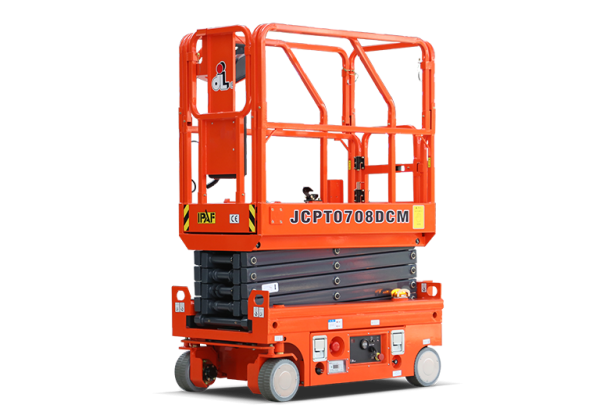

Dingli JCPT0708DCM Electric Scissor Lift – 24ft 11in Mini-Narrow Access
Specifications
Description
Dingli JCPT0708DCM Electric Scissor Lift (Mini Scissor Series) – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT0708DCM is a compact, battery-powered Mini Scissor Lift designed primarily for high-reach indoor applications. As part of the traditional DC electric series, it utilizes a hydraulic system powered by a DC battery, providing a reliable and low-noise, zero-emission solution. It offers a generous maximum working height of 24 ft 11 in (7.60 m). With an ultra-narrow width of just 2 ft 8 in (0.81 m) and a weight of 2,866 lb (1,300 kg), the JCPT0708DCM is highly maneuverable. It is specifically engineered to fit easily into elevators and is ideal for working at height on building mezzanines or in crowded indoor spaces.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 24 ft 11 in | 7.60 m |
| Max Platform Height | 18 ft 4 in | 5.60 m |
| Safe Working Load (S.W.L) | 507 lb | 230 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 4 ft 6 in × 2 ft 4 in | 1.37 m × 0.70 m |
| Platform Extension | Unidirectional: 2 ft 0 in | Unidirectional: 0.60 m |
| Overall Width | 2 ft 8 in | 0.81 m |
| Overall Length (With Ladder) | 5 ft 0 in | 1.52 m |
| Overall Length (Without Ladder) | 4 ft 6 in | 1.37 m |
| Overall Weight (Lead-acid Battery) | 2,866 lb | 1,300 kg |
| Drive System | DC Electric Drive with Hydraulic Lift | DC Electric Drive with Hydraulic Lift |
| Battery (Standard) | Lead-Acid Maintenance-Free 24V/115Ah | Lead-Acid Maintenance-Free 24V/115Ah |
| Hydraulic Tank | 1.1 gal | 4 L |
| Max Occupants (Indoor/Outdoor) | 2/0 | 2/0 |
| Machine Model | JCPT0708DCM |
🔹 Key Features & Benefits
-
✅ Compact & Flexible: Small size, light weight, and ultra-narrow 2 ft 8 in (0.81 m) chassis allows easy movement through standard doorways and tight corridors.
-
✅ Elevator Access: Specially designed to enter and exit elevators, making it perfect for multi-story building maintenance and mezzanine work.
-
✅ High Reach: Provides nearly 25 feet of working height while maintaining a very small footprint.
-
✅ Transport Efficiency: Engineered for efficiency; one wrecker can transport multiple mini scissors simultaneously.
-
✅ Clean Operation: Battery-powered operation ensures zero noise and zero pollution, suitable for indoor, sensitive environments.
-
✅ Hydraulic System: A robust, traditional hydraulic lift system provides powerful lifting capacity within a compact design.
🔹 Applications
-
Interior fit-out, general maintenance, and installation in retail, offices, and commercial spaces.
-
Working at height in building mezzanines and other areas requiring the use of elevators.
-
Any indoor task requiring a compact, high-reaching, and quiet lift.
