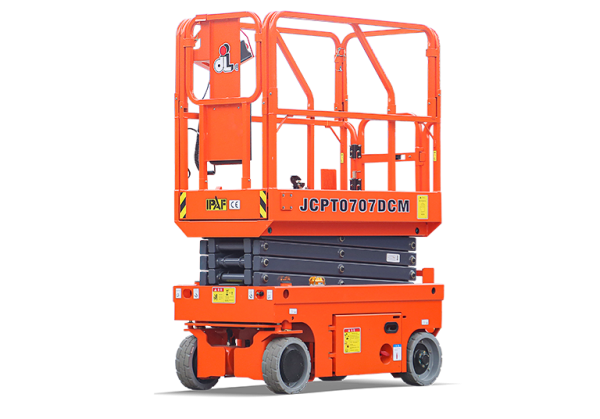

Dingli JCPT0707DCM Electric Scissor Lift – 21ft 4in Narrow Access
Specifications
Description
Dingli JCPT0707DCM Electric Scissor Lift (Mini Scissor Series) – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT0707DCM is a compact, battery-powered Mini Scissor Lift designed for high-reach indoor applications. It is part of the traditional DC electric series, utilizing a hydraulic system powered by a DC battery, which provides quiet, zero-emission operation. It delivers a maximum working height of 21 ft 4 in (6.50 m). With an ultra-narrow width of just 2 ft 6 in (0.76 m) and an overall weight of 2,646 lb (1,200 kg), the JCPT0707DCM is highly maneuverable. It is engineered to fit easily through standard doorways and into elevators, making it ideal for multi-story building maintenance and working in highly confined indoor spaces.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 21 ft 4 in | 6.50 m |
| Max Platform Height | 14 ft 9 in | 4.50 m |
| Safe Working Load (S.W.L) | 507 lb | 230 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 4 ft 9 in × 2 ft 5 in | 1.44 m × 0.74 m |
| Platform Extension | Unidirectional: 2 ft 0 in | Unidirectional: 0.60 m |
| Overall Width | 2 ft 6 in | 0.76 m |
| Overall Length (With Ladder) | 5 ft 2 in | 1.58 m |
| Overall Weight (Lead-acid Battery) | 2,646 lb | 1,200 kg |
| Drive System | DC Electric Drive with Hydraulic Lift | DC Electric Drive with Hydraulic Lift |
| Battery (Standard) | Lead-Acid Maintenance-Free 24V/115Ah | Lead-Acid Maintenance-Free 24V/115Ah |
| Hydraulic Tank | 0.7 gal (Approx.) | 3.5 L |
| Max Occupants (Indoor/Outdoor) | 2/1 | 2/1 |
| Machine Model | JCPT0707DCM |
🔹 Key Features & Benefits
-
✅ Compact & Flexible: Small size and ultra-narrow 2 ft 6 in (0.76 m) chassis allows easy passage through standard single doorways and movement in tight corridors.
-
✅ Elevator Access: Specially designed to enter and exit elevators, making it perfect for multi-story building maintenance and mezzanine work.
-
✅ High Reach: Provides over 21 feet of working height while maintaining a light and compact chassis.
-
✅ Clean Operation: Battery-powered operation ensures zero noise and zero pollution, suitable for indoor, sensitive environments.
-
✅ Maneuverability: Features zero inside turning radius (0 in) for exceptional mobility in extremely confined spaces.
-
✅ Transport Efficiency: One wrecker can transport multiple mini scissors simultaneously, optimizing logistics.
🔹 Applications
-
Interior fit-out, general maintenance, and installation in retail, offices, and commercial spaces.
-
Working at height in areas requiring the machine to fit through standard doors or use elevators.
-
Tasks requiring a compact, quiet, and high-reaching lift.
