Dingli JCPT0707DCH Electric Scissor Lift – 21ft 4in Narrow, Large Wheel
Specifications
Description
Dingli JCPT0707DCH Electric Scissor Lift (Mini Scissor Series) – Optimized Product Page Content
🔹 Product Overview

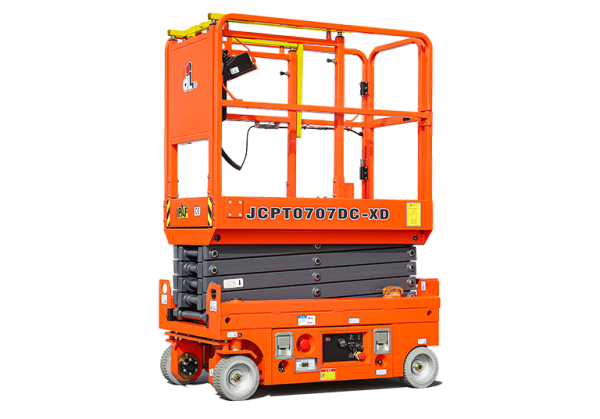

The Dingli JCPT0707DCH is a compact, battery-powered Mini Scissor Lift designed for high-reach indoor applications, featuring Large Wheels (indicated by ‘H’) for enhanced mobility over small obstacles. This model is part of the traditional DC electric series, using a robust hydraulic system powered by a DC battery, which provides quiet, zero-emission operation. It offers a maximum working height of 21 ft 4 in (6.50 m). With a narrow overall width of just 2 ft 6 in (0.76 m) and an overall weight of 2,094 lb (950 kg), the JCPT0707DCH is highly versatile. It is specifically designed for multi-story building maintenance, easily fitting into elevators while its large wheels improve its ability to traverse uneven floors or small thresholds common in construction sites and older buildings.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 21 ft 4 in | 6.50 m |
| Max Platform Height | 14 ft 9 in | 4.50 m |
| Safe Working Load (S.W.L) | 529 lb | 240 kg |
| S.W.L On Extension | 220 lb | 100 kg |
| Platform Size (L×W) | 4 ft 3 in × 2 ft 3 in | 1.29 m × 0.70 m |
| Platform Extension | Unidirectional: 2 ft 0 in | Unidirectional: 0.60 m |
| Overall Width | 2 ft 6 in | 0.76 m |
| Overall Length (With Ladder) | 4 ft 9 in | 1.46 m |
| Overall Weight (Lead-acid Battery) | 2,094 lb | 950 kg |
| Drive System | DC Electric Drive with Hydraulic Lift | DC Electric Drive with Hydraulic Lift |
| Battery (Standard) | Lead-Acid Maintenance-Free 24V/85Ah | Lead-Acid Maintenance-Free 24V/85Ah |
| Hydraulic Tank | 0.8 gal (Approx.) | 3 L |
| Max Occupants (Indoor/Outdoor) | 2/0 | 2/0 |
| Machine Model | JCPT0707DCH |
🔹 Key Features & Benefits
-
✅ High Mobility (H Model): Features large wheels (φ305×100mm tyres) for enhanced obstacle-crossing ability and increased clearance, improving versatility on varied indoor and compact outdoor surfaces.
-
✅ Compact & Narrow: Ultra-narrow 2 ft 6 in (0.76 m) chassis allows easy passage through standard single doorways and movement in tight corridors.
-
✅ Elevator Access: Specifically designed to enter and exit elevators, making it perfect for multi-story building maintenance and mezzanine work.
-
✅ High Reach: Provides over 21 feet of working height while maintaining a light and compact chassis.
-
✅ Clean Operation: Battery-powered operation ensures zero noise and zero pollution, suitable for indoor, sensitive environments.
-
✅ Transport Efficiency: One wrecker can transport multiple mini scissors simultaneously, optimizing logistics.
🔹 Applications
-
Interior fit-out, general maintenance, and installation in retail, offices, and commercial spaces.
-
Working at height in areas requiring the machine to fit through standard doors, use elevators, or navigate small thresholds.
-
Tasks requiring a compact, quiet, high-reaching lift with improved ground clearance.
