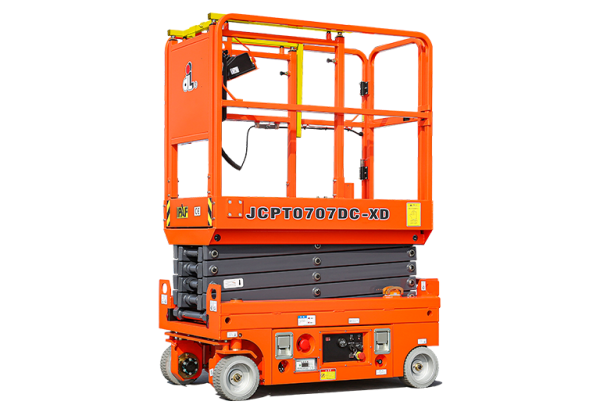

Dingli JCPT0707DC-XD Electric Scissor Lift – 22ft 11in Narrow Access
Specifications
Description
Dingli JCPT0707DC-XD Electric Scissor Lift (Mini Scissor Series) – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT0707DC-XD is a specialized compact, battery-powered Mini Scissor Lift designed for high-reach indoor applications. It is part of the traditional DC electric series, featuring a reliable hydraulic system powered by a DC battery, ensuring quiet, zero-emission operation. This model offers a maximum working height of 22 ft 11 in (7.00 m). With an ultra-narrow overall width of just 2 ft 6 in (0.76 m) and an overall weight of 2,161 lb (980 kg), the JCPT0707DC-XD is highly maneuverable. It is designed to fit easily through standard doorways and into elevators, making it an ideal choice for multi-story building maintenance and working in highly confined indoor spaces.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 22 ft 11 in | 7.00 m |
| Max Platform Height | 14 ft 9 in | 4.50 m |
| Safe Working Load (S.W.L) | 500 lb | 227 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 4 ft 3 in × 2 ft 3 in | 1.29 m × 0.70 m |
| Platform Extension | Unidirectional: 2 ft 0 in | Unidirectional: 0.60 m |
| Overall Width | 2 ft 6 in | 0.76 m |
| Overall Length (With Ladder) | 4 ft 9 in | 1.44 m |
| Overall Weight (Lead-acid Battery) | 2,161 lb | 980 kg |
| Drive System | DC Electric Drive with Hydraulic Lift | DC Electric Drive with Hydraulic Lift |
| Battery (Standard) | Lead-Acid Maintenance-Free 24V/85Ah | Lead-Acid Maintenance-Free 24V/85Ah |
| Hydraulic Tank | 0.8 gal (Approx.) | 3 L |
| Max Occupants (Indoor/Outdoor) | 2/0 | 2/0 |
| Machine Model | JCPT0707DC-XD |
🔹 Key Features & Benefits
-
✅ Compact & Flexible: Small size and ultra-narrow 2 ft 6 in (0.76 m) chassis allows easy passage through standard single doorways and movement in tight corridors.
-
✅ Elevator Access: Specifically designed to enter and exit elevators, making it perfect for multi-story building maintenance and mezzanine work.
-
✅ High Reach: Provides nearly 23 feet of working height while maintaining a light and compact chassis.
-
✅ Transport Efficiency: One wrecker can transport multiple mini scissors simultaneously, optimizing logistics.
-
✅ Clean Operation: Battery-powered operation ensures zero noise and zero pollution, suitable for indoor, sensitive environments.
-
✅ Maneuverability: Tight turning radius (1ft 4in inside/5ft 1in outside) for excellent mobility in confined spaces.
-
✅ Optional Lithium Battery: Available upgrade to a 24V/63Ah Lithium Battery.
🔹 Applications
-
Interior fit-out, general maintenance, and installation in retail, offices, and commercial spaces.
-
Working at height in areas requiring the machine to fit through standard doors or use elevators.
-
Tasks requiring a compact, quiet, and high-reaching lift.
