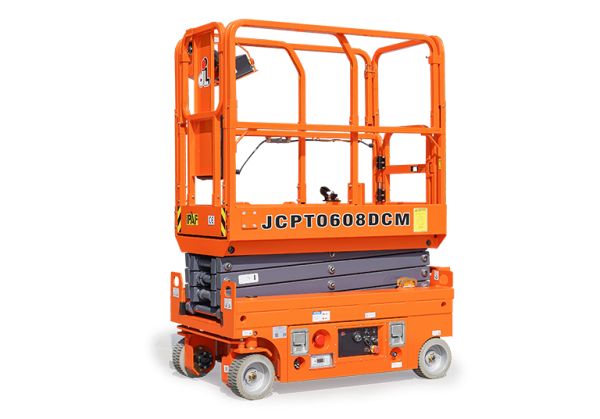

Dingli JCPT0608DCM Electric Scissor Lift – 21ft 4in Mini-Narrow Access
Specifications
Description
Dingli JCPT0608DCM Electric Scissor Lift (Mini Scissor Series) – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT0608DCM is a compact, battery-powered Mini Scissor Lift designed for indoor, high-reach applications. This model is part of the traditional DC electric series, featuring a robust hydraulic system powered by a DC battery, which provides quiet, zero-emission operation. It delivers a maximum working height of 21 ft 4 in (6.50 m). With an ultra-narrow width of just 2 ft 8 in (0.81 m) and a light overall weight of 2,183 lb (990 kg), the JCPT0608DCM is highly maneuverable. It is engineered to fit easily into elevators and is ideal for working at height on building mezzanines or in crowded indoor spaces.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 21 ft 4 in | 6.50 m |
| Max Platform Height | 14 ft 9 in | 4.50 m |
| Safe Working Load (S.W.L) | 507 lb | 230 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 4 ft 6 in × 2 ft 4 in | 1.37 m × 0.70 m |
| Platform Extension | Unidirectional: 2 ft 0 in | Unidirectional: 0.60 m |
| Overall Width | 2 ft 8 in | 0.81 m |
| Overall Length (With Ladder) | 5 ft 0 in | 1.52 m |
| Overall Weight (Lead-acid Battery) | 2,183 lb | 990 kg |
| Drive System | DC Electric Drive with Hydraulic Lift | DC Electric Drive with Hydraulic Lift |
| Battery (Standard) | Lead-Acid Maintenance-Free 24V/115Ah | Lead-Acid Maintenance-Free 24V/115Ah |
| Hydraulic Tank | 1.1 gal (Approx.) | 4 L |
| Max Occupants (Indoor/Outdoor) | 2/0 | 2/0 |
| Machine Model | JCPT0608DCM |
🔹 Key Features & Benefits
-
✅ Compact & Flexible: Small size, light weight, and ultra-narrow 2 ft 8 in (0.81 m) chassis allows easy movement through standard doorways and tight corridors.
-
✅ Elevator Access: Specially designed to enter and exit elevators, making it perfect for multi-story building maintenance and mezzanine work.
-
✅ High Reach: Provides over 21 feet of working height while maintaining a very small footprint.
-
✅ Clean Operation: Battery-powered operation ensures zero noise and zero pollution, suitable for indoor, sensitive environments.
-
✅ Transport Efficiency: Engineered for efficiency; one wrecker can transport multiple mini scissors simultaneously.
-
✅ Hydraulic System: A robust, traditional hydraulic lift system provides powerful lifting capacity within a compact design.
🔹 Applications
-
Interior fit-out, general maintenance, and installation in retail, offices, and commercial spaces.
-
Working at height in building mezzanines and other areas requiring the use of elevators.
-
Any indoor task requiring a compact, high-reaching, and quiet lift.
