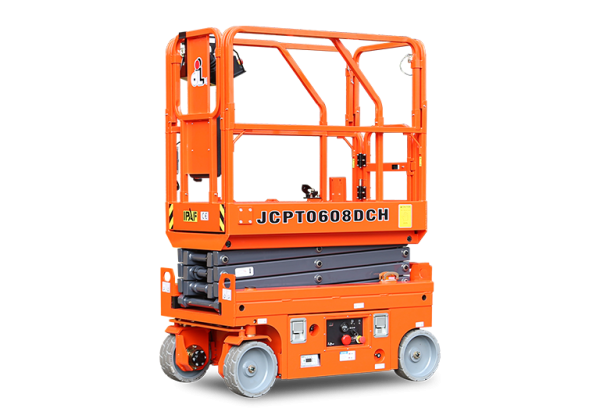

Dingli JCPT0608DCH Electric Scissor Lift – 21ft 4in Narrow, Large Wheel
Specifications
Description
Dingli JCPT0608DCH Electric Scissor Lift (Mini Scissor Series) – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT0608DCH is a compact, battery-powered Mini Scissor Lift designed for high-reach indoor applications, featuring Large Wheels (indicated by ‘H’) for enhanced mobility over small obstacles. This model is part of the traditional DC electric series, utilizing a hydraulic system powered by a DC battery, which ensures quiet, zero-emission operation. It delivers a maximum working height of 21 ft 4 in (6.50 m). With an ultra-narrow width of just 2 ft 8 in (0.81 m) and a light overall weight of 2,194 lb (995 kg), the JCPT0608DCH is highly versatile. Its narrow chassis allows it to fit easily into elevators, and its large wheels improve its ability to traverse uneven floors or small thresholds common in construction sites and older buildings.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 21 ft 4 in | 6.50 m |
| Max Platform Height | 14 ft 9 in | 4.50 m |
| Safe Working Load (S.W.L) | 507 lb | 230 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 4 ft 6 in × 2 ft 4 in | 1.37 m × 0.70 m |
| Platform Extension | Unidirectional: 2 ft 0 in | Unidirectional: 0.60 m |
| Overall Width | 2 ft 8 in | 0.81 m |
| Overall Length (With Ladder) | 5 ft 1 in | 1.54 m |
| Overall Weight (Lead-acid Battery) | 2,194 lb | 995 kg |
| Drive System | DC Electric Drive with Hydraulic Lift | DC Electric Drive with Hydraulic Lift |
| Battery (Standard) | Lead-Acid Maintenance-Free 24V/115Ah | Lead-Acid Maintenance-Free 24V/115Ah |
| Hydraulic Tank | 1.1 gal (Approx.) | 4 L |
| Max Occupants (Indoor/Outdoor) | 2/0 | 2/0 |
| Machine Model | JCPT0608DCH |
🔹 Key Features & Benefits
-
✅ High Mobility (H Model): Features large wheels (φ305×100mm tyres) for enhanced obstacle-crossing ability and increased clearance, improving versatility on varied indoor and compact outdoor surfaces.
-
✅ Compact & Narrow: Ultra-narrow 2 ft 8 in (0.81 m) chassis allows easy passage through standard single doorways and movement in tight corridors.
-
✅ Elevator Access: Specifically designed to enter and exit elevators, making it perfect for multi-story building maintenance and mezzanine work.
-
✅ Clean Operation: Battery-powered operation ensures zero noise and zero pollution, suitable for indoor, sensitive environments.
-
✅ Transport Efficiency: One wrecker can transport multiple mini scissors simultaneously, optimizing logistics.
🔹 Applications
-
Interior fit-out, general maintenance, and installation in commercial buildings, hospitals, and schools.
-
Working at height in areas requiring the machine to fit through standard doors, use elevators, or navigate small thresholds.
-
Tasks requiring a compact, quiet, high-reaching lift with improved ground clearance.
