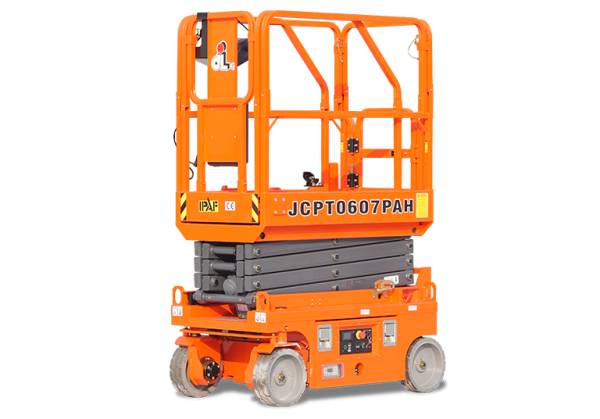

Dingli JCPT0607PAH Oil-Free Electric Scissor Lift – 18ft 5in Micro-Narrow, Large Wheel
Specifications
Description
Dingli JCPT0607PAH Electric Scissor Lift (Oil-Free Series) – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT0607PAH is the most compact and lightest specialized all-electric Scissor Lift in the “Oil-Free Scissor” series, designed for low-level indoor access but enhanced with Large Wheels (indicated by ‘H’) for improved mobility across uneven floors and small obstacles. It is powered entirely by efficient electric actuators for lifting, lowering, and driving, eliminating the traditional hydraulic system. This results in zero emissions, ultra-low noise, and superior energy efficiency (over 30% savings). The JCPT0607PAH provides a maximum indoor working height of 18 ft 5 in (5.60 m). Its incredibly low weight of 2,094 lb (950 kg) and narrow 2 ft 6 in (0.76 m) width make it ideal for use in elevators and on weight-restricted mezzanine floors.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height (Indoor) | 18 ft 5 in | 5.60 m |
| Max Working Height (Outdoor) | 11 ft 10 in | 3.60 m |
| Max Platform Height (Indoor) | 12 ft 5 in | 3.80 m |
| Safe Working Load (S.W.L) | 529 lb | 240 kg |
| S.W.L On Extension | 220 lb | 100 kg |
| Platform Size (L×W) | 4 ft 3 in × 2 ft 4 in | 1.29 m × 0.70 m |
| Platform Extension | Unidirectional: 2 ft 0 in | Unidirectional: 0.60 m |
| Overall Width | 2 ft 6 in | 0.76 m |
| Overall Length | 4 ft 9 in | 1.46 m |
| Overall Weight (AGM Battery) | 2,094 lb | 950 kg |
| Drive System | All-Electric Actuator (Oil-Free) | All-Electric Actuator (Oil-Free) |
| Battery (Standard) | Lead-Acid Maintenance-Free 24V/85Ah | Lead-Acid Maintenance-Free 24V/85Ah |
| Max Occupants (Indoor/Outdoor) | 2/1 | 2/1 |
| Machine Model | JCPT0607PAH |
Note: Max Platform Height (Indoor) is calculated as 1.80m less than Max Working Height, per the specified 5.60m/18ft 5in indoor working height, which is common for this range.
🔹 Key Features & Benefits
-
✅ Oil-Free Technology: Uses electric actuators for all functions, eliminating the hydraulic system, which avoids oil leakage, reduces maintenance costs, and ensures zero-emission operation.
-
✅ High Mobility (H Model): Features large wheels (φ305×100mm tyres) for superior obstacle-crossing ability and increased ground clearance (0.07m stowed) compared to the standard model, improving versatility.
-
✅ Ultra-Lightweight & Compact: Weighing only 2,094 lb (950 kg) with a narrow 2 ft 6 in (0.76 m) width, making it perfect for elevator access and use on weight-restricted floors like building mezzanines.
-
✅ High Efficiency & Energy Saving: Direct motor drive systems deliver 95% total transmission efficiency, providing over 30% energy savings for extended battery duration.
-
✅ Zero Emission & Low Noise: All-electric operation is silent, clean, and ideally suited for quiet, sensitive environments.
-
✅ Low Maintenance: Equipped with maintenance-free permanent magnet synchronous motors and an AGM battery, significantly reducing long-term service costs.
🔹 Applications
-
Low-level maintenance, facilities management, and installation in retail stores, offices, and hotels.
-
Projects requiring a lightweight machine that can enter elevators and traverse slight floor changes or small thresholds thanks to its large wheels.
-
Quick and easy vertical access tasks up to 18 feet in confined spaces.
