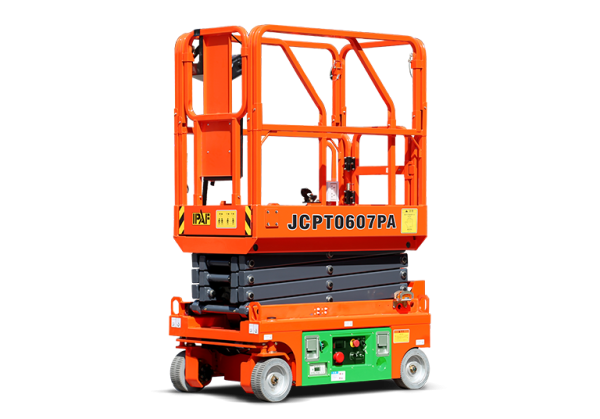

Dingli JCPT0607PA Oil-Free Electric Scissor Lift – 18ft 5in Micro-Narrow 2’6″
Specifications
Description
Dingli JCPT0607PA Electric Scissor Lift (Oil-Free Series) – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT0607PA is the smallest and lightest fully electric Scissor Lift in the innovative “Oil-Free Scissor” series, designed for low-level indoor access. It replaces the traditional hydraulic system entirely with highly efficient electric actuators for lifting, lowering, and driving. This all-electric design results in zero emissions, extremely low noise, and massive energy savings (over 30% due to 95% transmission efficiency). The JCPT0607PA offers a maximum indoor working height of 18 ft 5 in (5.60 m). Its ultra-compact chassis, with an overall width of just 2 ft 6 in (0.76 m) and a weight of 2,028 lb (920 kg), makes it exceptionally easy to transport, maneuver, and use on weight-restricted floors.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height (Indoor) | 18 ft 5 in | 5.60 m |
| Max Working Height (Outdoor) | 11 ft 10 in | 3.60 m |
| Max Platform Height (Indoor) | 12 ft 5 in | 3.80 m |
| Safe Working Load (S.W.L) | 529 lb | 240 kg |
| S.W.L On Extension | 220 lb | 100 kg |
| Platform Size (L×W) | 4 ft 3 in × 2 ft 4 in | 1.29 m × 0.70 m |
| Platform Extension | Unidirectional: 2 ft 0 in | Unidirectional: 0.60 m |
| Overall Width | 2 ft 6 in | 0.76 m |
| Overall Length | 4 ft 9 in | 1.44 m |
| Overall Weight (AGM Battery) | 2,028 lb | 920 kg |
| Drive System | All-Electric Actuator (Oil-Free) | All-Electric Actuator (Oil-Free) |
| Battery (Standard) | Lead-Acid Maintenance-Free 24V/85Ah | Lead-Acid Maintenance-Free 24V/85Ah |
| Max Occupants (Indoor/Outdoor) | 2/1 | 2/1 |
| Machine Model | JCPT0607PA |
Note: Max Platform Height (Indoor) is calculated as 1.80m less than Max Working Height, per the specified 5.60m/18ft 5in indoor working height, which is common for this range.
🔹 Key Features & Benefits
-
✅ Oil-Free Technology: Completely removes the hydraulic system by using electric actuators, which eliminates the risk of oil leakage, the need for oil changes, and all hydraulic-related maintenance.
-
✅ Ultra-Lightweight & Compact: Weighing only 2,028 lb (920 kg) with a narrow 2 ft 6 in (0.76 m) width, making it ideal for elevators, sensitive flooring, and extremely tight spaces.
-
✅ High Efficiency & Energy Saving: Direct motor drive systems are 95% efficient, providing over 30% energy savings and extended battery duration.
-
✅ Zero Emission & Low Noise: All-electric operation is silent, clean, and perfectly suited for retail, office buildings, and residential work.
-
✅ Operator Comfort: Full stroke proportional control ensures exceptionally smooth, precise, and comfortable lifting and lowering motion.
-
✅ Low Maintenance: Equipped with maintenance-free permanent magnet synchronous motors and a long-life AGM battery, drastically reducing long-term service costs.
🔹 Applications
-
Low-level maintenance, facilities management, stock picking, and cleaning in retail stores, hotels, offices, and schools.
-
Indoor projects where minimum floor loading and access through standard doorways are critical requirements.
-
Quick and easy vertical access tasks up to 18 feet.
