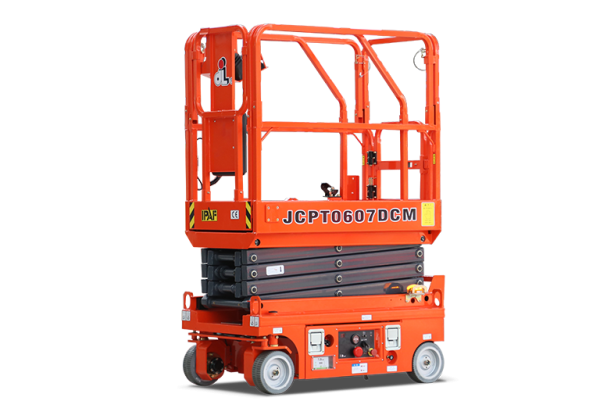

Dingli JCPT0607DCM Electric Scissor Lift – 18ft 4in Mini-Narrow Access
Specifications
Description
Dingli JCPT0607DCM Electric Scissor Lift (Mini Scissor Series) – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT0607DCM is a compact, battery-powered Mini Scissor Lift designed for indoor, narrow-access applications. This model is part of the traditional DC electric series, featuring a robust hydraulic system powered by a DC battery, which ensures quiet, zero-emission operation. It delivers a maximum working height of 18 ft 4 in (5.60 m). With an ultra-narrow width of just 2 ft 6 in (0.76 m) and a light overall weight of 2,028 lb (920 kg), the JCPT0607DCM is highly maneuverable. It is engineered to fit easily through standard doorways and into elevators, making it ideal for multi-story building maintenance and working in highly confined indoor spaces.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 18 ft 4 in | 5.60 m |
| Max Platform Height | 11 ft 10 in | 3.60 m |
| Safe Working Load (S.W.L) | 529 lb | 240 kg |
| S.W.L On Extension | 220 lb | 100 kg |
| Platform Size (L×W) | 4 ft 3 in × 2 ft 4 in | 1.29 m × 0.70 m |
| Platform Extension | Unidirectional: 2 ft 0 in | Unidirectional: 0.60 m |
| Overall Width | 2 ft 6 in | 0.76 m |
| Overall Length (With Ladder) | 4 ft 9 in | 1.44 m |
| Overall Weight (Lead-acid Battery) | 2,028 lb | 920 kg |
| Drive System | DC Electric Drive with Hydraulic Lift | DC Electric Drive with Hydraulic Lift |
| Battery (Standard) | Lead-Acid Maintenance-Free 24V/85Ah | Lead-Acid Maintenance-Free 24V/85Ah |
| Hydraulic Tank | 0.8 gal (Approx.) | 3 L |
| Max Occupants (Indoor/Outdoor) | 2/1 | 2/1 |
| Machine Model | JCPT0607DCM |
🔹 Key Features & Benefits
-
✅ Compact & Flexible: Small size, light weight, and ultra-narrow 2 ft 6 in (0.76 m) chassis allows easy movement through standard doorways and tight corridors.
-
✅ Elevator Access: Specially designed to enter and exit elevators, making it perfect for multi-story building maintenance and mezzanine work.
-
✅ Mid-Reach: Provides over 18 feet of working height while maintaining a light and compact chassis.
-
✅ Clean Operation: Battery-powered operation ensures zero noise and zero pollution, suitable for indoor, sensitive environments.
-
✅ Transport Efficiency: Engineered for efficiency; one wrecker can transport multiple mini scissors simultaneously.
🔹 Applications
-
Interior fit-out, general maintenance, and installation in retail, offices, and commercial spaces.
-
Working at height in building mezzanines and other areas requiring the use of elevators.
-
Any indoor task requiring a compact, quiet, and mid-reaching lift.
