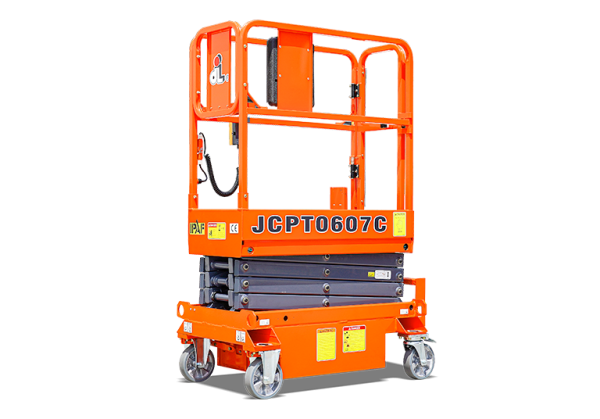

Dingli JCPT0607C Electric Scissor Lift – 19ft 4in Ultra-Narrow, Lightweight
Specifications
Description
Dingli JCPT0607C Electric Scissor Lift (Mini Scissor Series) – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT0607C is an extremely compact, battery-powered Mini Scissor Lift designed for the lowest-height and narrowest-access indoor applications. This model uses a lift-only system (indicated by ‘C’ in this context, implying push-around or manual positioning/hydraulic drive, although the description only mentions a lift motor and battery) providing quiet, zero-emission operation. It delivers a maximum working height of 19 ft 4 in (5.90 m). With an ultra-narrow width of just 2 ft 5 in (0.75 m) and an exceptionally light overall weight of 1,058 lb (480 kg), the JCPT0607C is the lightest and smallest unit in the series. It is ideal for single-occupant tasks where minimal floor loading and maximum maneuverability in very confined indoor spaces are critical.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 19 ft 4 in | 5.90 m |
| Max Platform Height | 12 ft 10 in | 3.90 m |
| Safe Working Load (S.W.L) | 529 lb | 240 kg |
| S.W.L On Extension | / | / |
| Platform Size (L×W) | 3 ft 9 in × 2 ft 2 in | 1.15 m × 0.66 m |
| Platform Extension | / | / |
| Overall Width | 2 ft 5 in | 0.75 m |
| Overall Length (With Ladder) | 4 ft 3 in | 1.31 m |
| Overall Weight (Lead-acid Battery) | 1,058 lb | 480 kg |
| Drive System | DC Hydraulic Lift (Lift only / push-around functionality assumed due to lack of driving motor/speed details, but battery/charger are present) | DC Hydraulic Lift |
| Battery (Standard) | Lead-Acid Maintenance-Free 12V/85Ah | Lead-Acid Maintenance-Free 12V/85Ah |
| Hydraulic Tank | 0.8 gal (Approx.) | 3 L |
| Max Occupants (Indoor/Outdoor) | 1/0 | 1/0 |
| Machine Model | JCPT0607C |
🔹 Key Features & Benefits
-
✅ Ultra-Lightweight: At just 1,058 lb (480 kg), it is ideal for floors with strict load limits.
-
✅ Extremely Narrow Chassis: Ultra-narrow 2 ft 5 in (0.75 m) width allows for passage through the narrowest doorways and corridors.
-
✅ Elevator Access: Specially designed to enter and exit elevators for multi-story building maintenance.
-
✅ Clean Operation: Battery-powered operation ensures zero noise and zero pollution, suitable for indoor, sensitive environments.
-
✅ High Reach for Size: Provides nearly 20 feet of working height in a very small footprint.
🔹 Applications
-
Interior fit-out, painting, and maintenance in residential, retail, and commercial buildings with tight access.
-
Tasks requiring a single operator in areas where low weight and narrow passage are paramount.
-
Working at height in building mezzanines and other areas requiring the use of elevators.
