Dingli JCPT0607A Push-Around Scissor Lift – 19ft 4in Ultra-Narrow, Lightweight
Specifications
Description
Dingli JCPT0607A Electric Scissor Lift (Mini Scissor Series) – Optimized Product Page Content
🔹 Product Overview

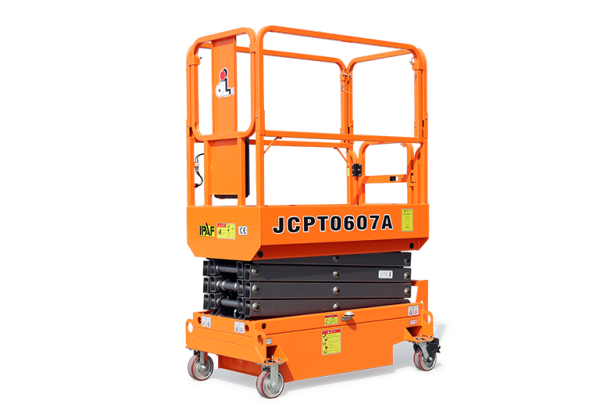

The Dingli JCPT0607A is a compact, battery-powered Mini Scissor Lift designed for extremely narrow-access indoor applications. This model is a push-around lift (indicated by ‘A’ and the absence of a driving motor or travel speeds in the specs) with a hydraulic lift system powered by a DC battery, ensuring quiet, zero-emission operation. It delivers a maximum working height of 19 ft 4 in (5.90 m). With an ultra-narrow width of just 2 ft 6 in (0.76 m) and a light overall weight of 1,168 lb (530 kg), the JCPT0607A is highly maneuverable. It is ideal for single-occupant tasks where low floor loading and access through standard doorways and elevators are critical.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 19 ft 4 in | 5.90 m |
| Max Platform Height | 12 ft 10 in | 3.90 m |
| Safe Working Load (S.W.L) | 529 lb | 240 kg |
| S.W.L On Extension | / | / |
| Platform Size (L×W) | 4 ft 3 in × 2 ft 4 in | 1.29 m × 0.70 m |
| Platform Extension | / | / |
| Overall Width | 2 ft 6 in | 0.76 m |
| Overall Length (With Ladder) | 4 ft 9 in | 1.44 m |
| Overall Weight (Lead-acid Battery) | 1,168 lb | 530 kg |
| Drive System | Push-Around / DC Hydraulic Lift | Push-Around / DC Hydraulic Lift |
| Battery (Standard) | Lead-Acid Maintenance-Free 12V/85Ah | Lead-Acid Maintenance-Free 12V/85Ah |
| Hydraulic Tank | 0.8 gal (Approx.) | 3 L |
| Max Occupants (Indoor/Outdoor) | 1/0 | 1/0 |
| Machine Model | JCPT0607A |
🔹 Key Features & Benefits
-
✅ Ultra-Lightweight: At 1,168 lb (530 kg), it is suitable for floors with strict load limits.
-
✅ Extremely Narrow Chassis: Ultra-narrow 2 ft 6 in (0.76 m) width allows for easy passage through standard doorways and tight corridors.
-
✅ Push-Around Design: Absence of a driving motor makes it simpler, lighter, and reduces maintenance, while the lift is still battery-powered.
-
✅ Elevator Access: Specially designed to enter and exit elevators for multi-story building maintenance.
-
✅ Clean Operation: Battery-powered operation ensures zero noise and zero pollution, suitable for indoor, sensitive environments.
🔹 Applications
-
Interior fit-out, painting, and maintenance in residential, retail, and commercial buildings with tight access.
-
Tasks requiring a single operator in areas where low weight and narrow passage are paramount.
-
Working at height in building mezzanines and other areas requiring the use of elevators.
