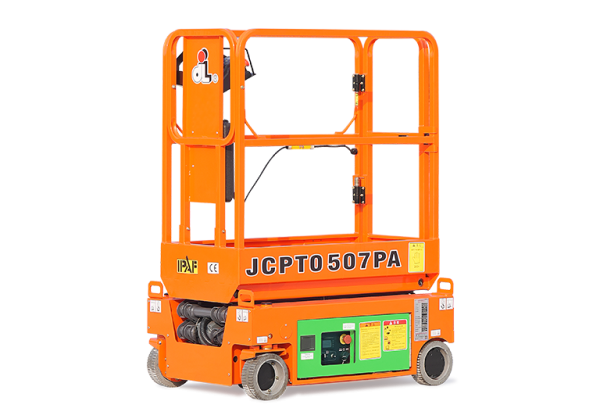

Dingli JCPT0507PA Oil-Free Electric Scissor Lift – 16ft 7in Ultra-Lightweight
Specifications
Description
Dingli JCPT0507PA Electric Scissor Lift (Oil-Free Series) – Optimized Product Page Content
🔹 Product Overview
The Dingli JCPT0507PA is the smallest and lightest fully electric Scissor Lift in the innovative “Oil-Free Scissor” series, specifically engineered for ultra-compact, low-level access applications. This machine is entirely driven by highly efficient electric actuators for all functions (lifting, lowering, and driving), completely eliminating the hydraulic system. This design guarantees zero oil contamination, minimal noise, maintenance-free operation, and significant energy savings (over 30%). The JCPT0507PA offers a maximum indoor working height of 16 ft 7 in (5.05 m). With an extremely low overall weight of just 1,256 lb (570 kg) and an overall length of 4 ft 4 in (1.33 m), it is one of the easiest lifts to transport and maneuver in congested or highly sensitive indoor environments.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height (Indoor) | 16 ft 7 in | 5.05 m |
| Max Working Height (Outdoor) | 10 ft 0 in | 3.05 m |
| Max Platform Height (Indoor) | 11 ft 7 in | 3.55 m |
| Safe Working Load (S.W.L) | 507 lb | 230 kg |
| S.W.L On Extension | N/A | N/A |
| Platform Size (L×W) | 3 ft 10 in × 1 ft 10 in | 1.16 m × 0.57 m |
| Platform Extension | N/A | N/A |
| Overall Width | 2 ft 6 in | 0.77 m |
| Overall Length | 4 ft 4 in | 1.33 m |
| Overall Weight (AGM Battery) | 1,256 lb | 570 kg |
| Drive System | All-Electric Actuator (Oil-Free) | All-Electric Actuator (Oil-Free) |
| Battery (Standard) | Lead-Acid Maintenance-Free 24V/55Ah | Lead-Acid Maintenance-Free 24V/55Ah |
| Max Occupants (Indoor/Outdoor) | 1/0 | 1/0 |
| Machine Model | JCPT0507PA |
Note: Max Platform Height (Indoor) is calculated as 1.50m less than Max Working Height, which is an industry standard for this class of machine.
🔹 Key Features & Benefits
-
✅ Oil-Free Technology: Uses electric actuators instead of hydraulics, eliminating the risk of oil spills, reducing maintenance drastically, and ensuring a zero-emission, clean operation.
-
✅ Ultra-Lightweight & Compact: At just 1,256 lb (570 kg) and 4 ft 4 in long, this machine is perfect for sensitive or restricted floors, passenger elevators, and storage where space is minimal.
-
✅ Maximized Efficiency: Direct motor drive systems offer a total transmission efficiency of 95%, resulting in over 30% energy savings and extended operational run time.
-
✅ Zero Emission & Low Noise: All-electric power is quiet, making it ideal for work during business hours in populated environments like retail stores, offices, and residential buildings.
-
✅ Operator Comfort: Full stroke proportional control provides smooth, jitter-free lifting and lowering for a safer and more comfortable user experience.
-
✅ Optional Lithium Battery: Available upgrade to a 24V/63Ah Lithium Battery, which further reduces the overall weight to 1,190 lb (540 kg).
🔹 Applications
-
Very low-level maintenance, small repairs, stock replenishment, and cleaning.
-
Accessing small rooms, tight corridors, and fitting easily into standard passenger or freight elevators.
-
Work in noise-sensitive and environmentally protected areas.
