Dingli GTWY11-1300 Mobile Vertical Lift – 36ft 1in & 992lb Ultra-Lightweight
Specifications
Description
Dingli GTWY11-1300 Mobile Vertical Lift – Optimized Product Page Content
🔹 Product Overview

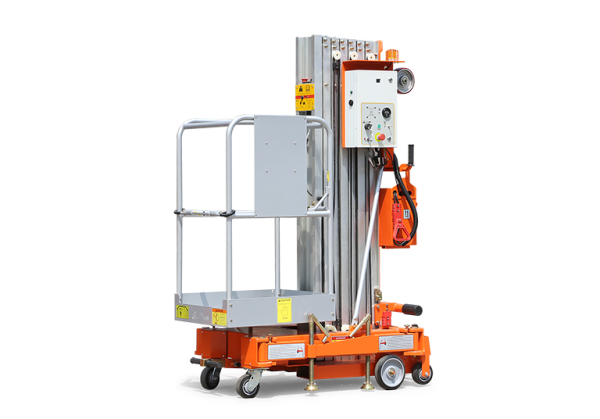

The Dingli GTWY11-1300 is an extremely lightweight, single-person Mobile Vertical Lift (a non-self-propelled, push-around mast lift) designed for significant vertical reach in narrow, indoor spaces. The machine must be manually pushed into its work position and then stabilized using its outriggers. It achieves a maximum working height of 36 ft 1 in (11.00 m). With an ultra-narrow stowed width of just 2 ft 6 in (0.75 m) and starting at only 992 lb (450 kg), the GTWY11-1300 is ideal for high-reach, low-impact maintenance tasks, especially in sensitive environments where low floor loading is critical.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 36 ft 1 in | 11.00 m |
| Max Platform Height | 29 ft 7 in | 9.00 m |
| Safe Working Load (S.W.L) | 331 lb | 150 kg |
| Platform Size (L×W) | 2 ft 4 in × 1 ft 11 in | 0.70 m × 0.60 m |
| Overall Width | 2 ft 6 in | 0.75 m |
| Overall Length (Stowed) | 4 ft 5 in | 1.34 m |
| Overall Height (Stowed) | 6 ft 6 in | 1.99 m |
| Overall Weight (AC Power) | 992 lb | 450 kg |
| Overall Weight (DC Power) | 1,036 lb | 470 kg |
| Stabilization System | Outrigger Leveling System | Outrigger Leveling System |
| Max Occupants (Indoor/Outdoor) | 1/0 | 1/0 |
| Power Options | AC (220V/1.5kW) or DC (12V/1.5kW) | AC or DC |
| Machine Model | GTWY11-1300 |
🔹 Key Features & Benefits
-
✅ Vertical Reach: Provides over 36 feet of working height, suitable for medium-to-high ceiling facilities.
-
✅ Ultra-Lightweight: Starting at only 992 lb (450 kg), this is one of the lightest lifts in its height class, minimizing floor loading pressure in sensitive environments like data centers and clean rooms.
-
✅ Ultra-Narrow Access: Narrow width of 2 ft 6 in (0.75 m) ensures passage through standard single doorways.
-
✅ Compact Footprint: Short stowed length of only 4 ft 5 in (1.34 m) aids maneuverability in congested areas.
-
✅ Stable & Secure: Features an outrigger leveling system with a limit switch, ensuring safe and reliable operation when deployed.
🔹 Applications
-
Single-person maintenance, inspection, and lighting installation in offices, retail, and facilities with smooth, level floors.
-
Work requiring significant height where floor-loading restrictions are a primary concern.
-
Indoor use where the machine must be manually moved and stabilized (non-self-propelled).
