Dingli BA22CRT2 Articulating Boom Lift – 72ft Diesel 4WD Up-and-Over 320kg Capacity
Specifications
Description
Dingli BA22CRT2 Articulating Boom Lift – Optimized Product Page Content
🔹 Product Overview

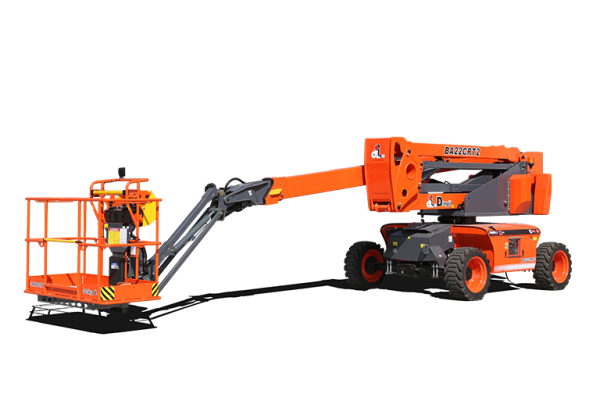

The Dingli BA22CRT2 is a diesel-powered Articulating (Knuckle) Boom Lift from the D Series, designed for navigating obstacles and providing vertical reach while maintaining a compact, container-transportable design. The “BA22CRT2” denotes a machine in the 22-meter (72-foot) platform height class with Articulating and Rough Terrain capabilities. Developed by Dingli’s domestic R&D Center, it features a lightweight and energy-saving design, an integrated axle with 4WD and 2WS (Two-Wheel Steering) standard, and a powerful 320 kg (705 lb) unrestricted load capacity at full height. This model also offers up-and-over clearance and below-ground probing capabilities.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 72 ft 4 in | 22.04 m |
| Max Platform Height | 65 ft 9 in | 20.04 m |
| Max Horizontal Outreach | 43 ft 2 in | 13.17 m |
| Max Up And Over Clearance | 26 ft 10 in | 8.18 m |
| Max Down Probing Depth | 5 ft 8 in | 1.74 m |
| Platform Capacity (Standard) | 705 lb | 320 kg |
| Driveable at Full Height | Yes (with large 320kg load) | Yes (with large 320kg load) |
| Machine Width | 8 ft | 2.44 m |
| Drive System | Diesel/Hydraulic (4WD, 2WS/4WS optional) | Diesel/Hydraulic (4WD, 2WS/4WS optional) |
| Gradeability (4WD) | 40 % | 40 % |
| Machine Model | BA22CRT2 |
🔹 Key Features & Benefits
-
✅ Versatile Reach and Articulation: Provides a substantial 72 ft 4 in (22.04 m) working height and excellent articulation for complex positioning, including 26 ft 10 in (8.18 m) of up-and-over clearance.
-
✅ High Unrestricted Capacity: Offers a generous 705 lb (320 kg) platform capacity which is driveable at full height, enhancing productivity and allowing for more tools/materials.
-
✅ Down Probing Capability: Can reach 5 ft 8 in (1.74 m) below ground level, adding versatility for maintenance tasks near ground obstructions.
-
✅ Container Transportable: Designed to be suitable for standard container transport.
-
✅ Rough Terrain Performance: Equipped with an integrated axle, 4WD, and a low-power Kubota D1105 (18.2kW) engine, capable of 40% gradeability.
-
✅ Maneuverability: Offers a tight optional Four-Wheel Steering turning radius (4ft 3in inside) for enhanced maneuverability on crowded sites.
🔹 Applications
-
Structural Erection and Component Installation on mid-rise projects
-
Maintenance and Inspection of industrial facilities, circumventing pipes and structures
-
Building Envelope and Façade Work requiring ‘up and over’ access
-
Utility and Electrical Work on rough or unprepared surfaces
-
Tasks requiring high capacity and articulation.
