Dingli AMWP8-1200 Electric Vertical Lift – 26ft 3in & 2ft 6in Ultra-Narrow
Specifications
Description
Dingli AMWP8-1200 Self-propelled Vertical Lift – Optimized Product Page Content
🔹 Product Overview

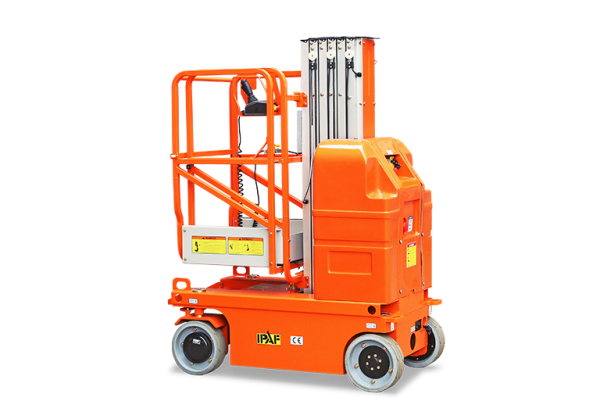

The Dingli AMWP8-1200 is a compact, self-propelled, electric Vertical Lift designed for low-to-mid-height access in ultra-narrow spaces. This model is engineered for superior maneuverability and efficiency in demanding indoor environments. It delivers a maximum working height of 26 ft 3 in (8.00 m). With an ultra-narrow width of just 2 ft 6 in (0.76 m) and a lightweight chassis, the AMWP8-1200 is specifically designed for navigating standard doorways and tight aisles in settings like warehouses, supermarkets, hotels, and airports.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 26 ft 3 in | 8.00 m |
| Max Platform Height | 19 ft 8 in | 6.00 m |
| Safe Working Load (S.W.L) | 351 lb | 159 kg |
| S.W.L On Extension | 351 lb | 159 kg |
| Platform Size (L×W) | 2 ft 6 in × 2 ft 5 in | 0.75 m × 0.73 m |
| Platform Extension | Unidirectional: 1 ft 9 in | Unidirectional: 0.53 m |
| Overall Width | 2 ft 6 in | 0.76 m |
| Overall Length | 4 ft 7 in | 1.39 m |
| Overall Weight | 2,832 lb | 1,285 kg |
| Drive System | Self-propelled DC Electric Drive | Self-propelled DC Electric Drive |
| Battery (Standard) | Lead-Acid Maintenance-Free 24V/115Ah | Lead-Acid Maintenance-Free 24V/115Ah |
| Max Occupants (Indoor/Outdoor) | 1/0 | 1/0 |
| Travel Speed (Stowed) | ≯2.49 mph | ≯4.0 km/h |
| Machine Model | AMWP8-1200 |
🔹 Key Features & Benefits
-
✅ Ultra-Narrow Access: Narrowest chassis available at just 2 ft 6 in (0.76 m) wide, ensuring passage through all standard single doorways.
-
✅ Ideal Working Height: Provides over 26 feet of working height, suitable for common maintenance and installation tasks.
-
✅ Driveable at Full Height: Increases on-site efficiency by allowing the operator to drive the machine while the platform is raised.
-
✅ Automatic Pothole Protection: Enhances safety and stability during movement.
-
✅ Compact & Lightweight: Light overall weight of 2,832 lb (1,285 kg) is gentle on finished flooring and sensitive surfaces.
-
✅ Clean Operation: Electric power ensures zero noise and zero emissions, suitable for all indoor environments.
🔹 Applications
-
Electrical, lighting, and general maintenance work in offices, retail, hotels, and libraries.
-
Stocking and inventory management in narrow warehouse aisles.
-
Any indoor application requiring vertical reach combined with ultra-narrow passage capability.
