Dingli AMWP7-8100L Oil-free Electric Vertical Lift – 22ft & 2ft 6in Ultra-Narrow
Specifications
Description
Dingli AMWP7-8100L Oil-free & All-electric Vertical Lift – Optimized Product Page Content
🔹 Product Overview

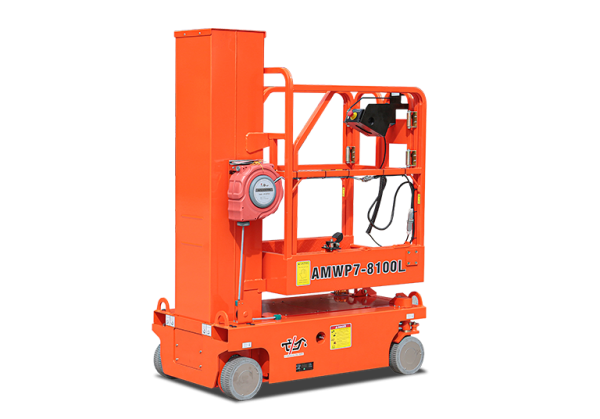

The Dingli AMWP7-8100L is a compact, self-propelled, electric Oil-free & All-electric Vertical Lift designed for low-to-mid-height, ultra-narrow-access indoor applications. This model uses an innovative electric lifting push rod instead of a traditional hydraulic cylinder, making it completely “oil-free.” This design choice maximizes energy saving, environmental protection, and ensures a truly maintenance-free operation (aided by a brushless DC motor). It delivers a maximum working height of 22 ft 0 in (6.70 m). With an ultra-narrow width of just 2 ft 6 in (0.76 m) and a light overall weight of 2,182 lb (990 kg), the AMWP7-8100L offers unparalleled access in the most confined, sensitive spaces.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 22 ft 0 in | 6.70 m |
| Max Platform Height | 15 ft 5 in | 4.70 m |
| Safe Working Load (S.W.L) | 440 lb | 200 kg |
| S.W.L On Extension | 249 lb | 113 kg |
| Platform Size (L×W) | 3 ft 3 in × 2 ft 6 in | 1.00 m × 0.76 m |
| Platform Extension | Unidirectional: 1 ft 8 in | Unidirectional: 0.50 m |
| Overall Width | 2 ft 6 in | 0.76 m |
| Overall Length | 4 ft 9 in | 1.45 m |
| Overall Weight | 2,182 lb | 990 kg |
| Drive System | Self-propelled AC Electric Drive / Electric Push Rod Lift (Oil-free) | Self-propelled AC Electric Drive / Electric Push Rod Lift (Oil-free) |
| Battery (Standard) | Lead-Acid Maintenance-Free 2×12V/115Ah | Lead-Acid Maintenance-Free 2×12V/115Ah |
| Max Occupants (Indoor/Outdoor) | 1 | 1 |
| Travel Speed (Stowed) | ≯2.20 mph | ≯3.6 km/h |
| Machine Model | AMWP7-8100L |
🔹 Key Features & Benefits
-
✅ Ultra-Narrow Access: The narrowest vertical mast lift offered at just 2 ft 6 in (0.76 m) wide, making it perfect for maneuvering through single doors and fitting into tight, restricted areas.
-
✅ Oil-Free Operation: Uses an electric lifting push rod instead of traditional hydraulics, completely eliminating the risk of oil leaks, improving environmental protection, and maximizing energy efficiency.
-
✅ Maintenance-Free: Equipped with a brushless DC motor and maintenance-free batteries for reduced downtime and total cost of ownership.
-
✅ Clean & Quiet: Zero noise, zero emission, and zero pollution, making it perfectly suited for operation in hospitals, libraries, data centers, and finished indoor spaces.
-
✅ Compact & Lightweight: At only 2,182 lb (990 kg), it is gentle on flooring and easily transportable.
🔹 Applications
-
Sensitive and sterile environments such as hospitals, clean rooms, data centers, and pharmaceutical facilities where no oil contamination is allowed.
-
Low-to-mid height indoor maintenance, electrical work, and inventory tasks in retail, office buildings, and hotels.
-
Work in extremely confined spaces and aisles.
