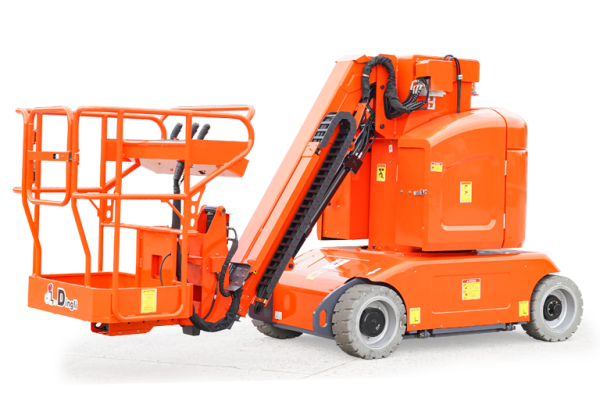

Dingli AMWP13-9200 Electric Vertical Lift – 40ft Jib Boom & 18ft Reach
Specifications
Description
Dingli AMWP13-9200 Self-propelled Vertical Lift – Optimized Product Page Content
🔹 Product Overview
The Dingli AMWP13-9200 is a self-propelled, electric Vertical Lift (sometimes referred to as a mast boom lift) designed for maximum height and reach in confined spaces. Unlike standard vertical mast lifts, this model features a Jib and Turret Rotation for outstanding up-and-over clearance and horizontal outreach. Powered by a 48V battery system, it offers clean, quiet, and efficient operation. It delivers an impressive maximum working height of 40 ft 8 in (12.40 m) and a maximum horizontal reach of 18 ft 1 in (5.50 m). With an overall width of just 3 ft 11 in (1.20 m), this machine provides superior access capabilities without sacrificing maneuverability.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 40 ft 8 in | 12.40 m |
| Max Platform Height | 34 ft 1 in | 10.40 m |
| Max Horizontal Reach | 18 ft 1 in | 5.50 m |
| Safe Working Load (S.W.L) | 441 lb | 200 kg |
| Max Up And Over Clearance | 23 ft 0 in | 7.00 m |
| Platform Size (L×W) | 2 ft 3 in × 3 ft 1 in | 0.69 m × 0.93 m |
| Overall Width | 3 ft 11 in | 1.20 m |
| Overall Length | 12 ft 6 in | 3.82 m |
| Overall Weight | 10,847 lb | 4,920 kg |
| Drive System | AC Electric Drive | AC Electric Drive |
| Turret Rotation | 345° | 345° |
| Jib Movement | +60° to -60° | +60° to -60° |
| Battery (Standard) | Lead-Acid Maintenance-Free 48V/200Ah | Lead-Acid Maintenance-Free 48V/200Ah |
| Max Occupants (Indoor/Outdoor) | 2/1 | 2/1 |
| Machine Model | AMWP13-9200 |
🔹 Key Features & Benefits
-
✅ Superior Reach & Articulation: Features a full jib and 345° turret rotation, allowing operators to navigate around obstacles (up and over clearance of 23 ft) and reach work areas traditional vertical lifts cannot.
-
✅ High Working Height: Provides over 40 feet of working height, suitable for taller facilities and structures.
-
✅ Narrow Chassis: A compact 3 ft 11 in (1.20 m) width ensures excellent maneuverability in crowded indoor and narrow outdoor job sites.
-
✅ Self-Propelled: Fully proportional AC drive system allows movement and steering from the platform, increasing efficiency.
-
✅ Clean Operation: Electric power (48V system) guarantees zero noise and zero emissions, ideal for indoor environments.
🔹 Applications
-
Complex installations, maintenance, and repair tasks in warehouses, factories, convention centers, and airports.
-
Indoor and outdoor applications requiring significant vertical height combined with horizontal and up-and-over reach.
-
Working in areas where the machine must navigate tight aisles or standard double doorways.
