Dingli AMWP11.5-8200AC Electric Vertical Lift – 36ft 9in Jib & 3ft 3in Narrow
Specifications
Description
Dingli AMWP11.5-8200AC Self-propelled Vertical Lift – Optimized Product Page Content
🔹 Product Overview

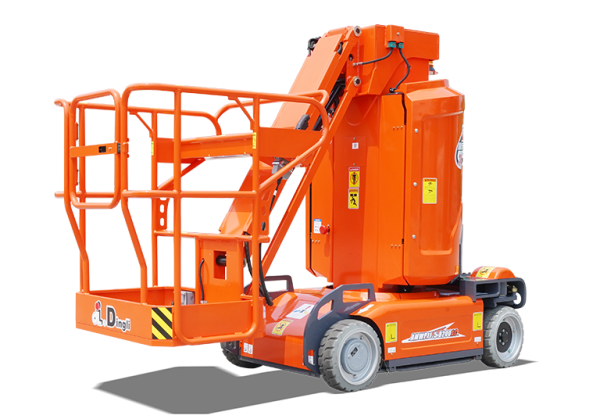

The Dingli AMWP11.5-8200AC is a self-propelled, electric Vertical Lift designed for high-reach, narrow-access indoor applications. This model features a fully sealed AC electric system (indicated by ‘AC’ in the model name) which is maintenance-free, highly efficient, and waterproof. It includes a jib and turret rotation, providing excellent up-and-over capability. It delivers a maximum working height of 36 ft 9 in (11.20 m). With an overall width of just 3 ft 3 in (1.00 m), the AMWP11.5-8200AC is specialized for navigating narrow spaces in warehouses, supermarkets, hotels, and airports.
🔹 Key Specifications & Capabilities
| Detail | US Imperial | Metric |
| Max Working Height | 36 ft 9 in | 11.20 m |
| Max Platform Height | 30 ft 2 in | 9.20 m |
| Safe Working Load (S.W.L) | 441 lb | 200 kg |
| Platform Size (L×W) | 2 ft 3 in × 3 ft 1 in | 0.69 m × 0.93 m |
| Overall Width | 3 ft 3 in | 1.00 m |
| Overall Length | 8 ft 7 in | 2.62 m |
| Overall Weight | 6,548 lb | 2,970 kg |
| Drive System | Fully Sealed AC Electric Drive | Fully Sealed AC Electric Drive |
| Turret Rotation | 345° | 345° |
| Jib Movement | +70° to -60° | +70° to -60° |
| Battery (Standard) | Lead-Acid Maintenance-Free 24V/200Ah (also available with Lithium) | Lead-Acid Maintenance-Free 24V/200Ah |
| Max Occupants (Indoor/Outdoor) | 2/1 | 2/1 |
| Travel Speed (Stowed) | 3.11 mph | ≯5.0 km/h |
| Machine Model | AMWP11.5-8200AC |
🔹 Key Features & Benefits
-
✅ Maintenance-Free AC System: Fully sealed AC system and maintenance-free batteries lead to a truly maintenance-free machine, offering greater waterproof protection and efficiency.
-
✅ High Reach for Narrow Access: Provides nearly 37 feet of working height while maintaining a narrow 3 ft 3 in (1.00 m) width.
-
✅ Exceptional Maneuverability: Features 345° Turret Rotation and a jib (Jib Movement: +70°/-60°) for navigating complex obstacles and reaching high.
-
✅ Driveable at Full Height: Increases on-site efficiency and reduces cycle times.
-
✅ Enhanced Safety: Equipped with the unique pothole protection system for higher safety.
🔹 Applications
-
Maintenance, installation, and inspection in sensitive indoor environments like shopping centers, hotels, and exhibition halls.
-
Work in narrow aisles and hard-to-reach locations requiring both vertical lift and horizontal/up-and-over outreach.
-
Indoor and stable outdoor applications where quiet, non-polluting operation is required.
